TRIAX KOKA RG6 PE black Cable

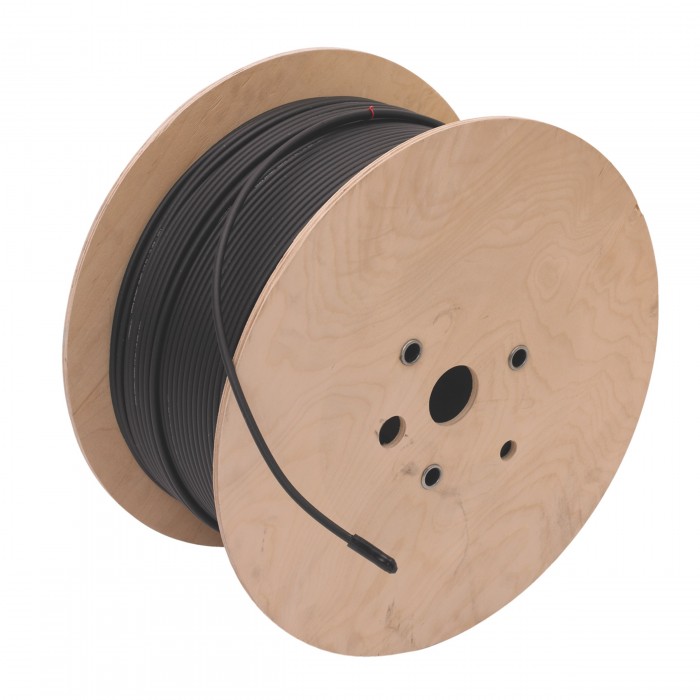

RG 6 – PVC black • 305m reel
TRIAX RG 6 PE type is a premium cable for outdoor installations. The wide frequency range allows the cable to carry signals for both television, radio, satellite receivers etc., whether the signal comes from satellite, terristrial
antenna or cable-tv.
This cable is designed with a center conductor of Copper Clad Steel (CCS) which offers high mechanical strength. Due to the gas injected foam, which is far superior to the chemical foam, the copper cladding carries the signals
without great losses. A good quality conductor and appropriate gas injected dielectric grants velocity ratio higher than 80%.
For outdoor installation we highly recommend the coax cables with PE jacket, as this material simply is more resistant to weather conditions.
Specifications
EAN Number 5702661500268

CONSTRUCTION

Inner conductor – material ccs
Inner conductor – dimension 1.02 ± 0.01 mm
Dielectric – material PE gas injected
Dielectric – dimension 4.57 ± 0.05 mm
Shield (First) foil 1 — material Al/Pet – bonded
Shield (First) foil 1 —overlap 20 %
Shield (Second) — braid material Al wire
Shield (Second) — braid coverage 60 ± 3 %
Jacket — dimension 6.86 ± 0.15 mm
Jacket – material PE

SHIELDING
Screening attenuation @ 30-1000 MHz > 75 dB
Screening attenuation @ 1000-2000 MHz
Screening attenuation @ 2000-3000 MHz
CHARACTERISTICS
Type KOKA RG6
> 65 dB
> 55 dB

LOSS
Attenuation (200C/100mtr) @ 5 MHz
Attenuation (200C/100mtr) @ 50 MHz
2.66 dB
5.0 dB
Attenuation (200C/100mtr) @ 200 MHz 9.0 dB
Attenuation (200C/100mtr) @ 470 MHz 15.2 dB
Attenuation (200C/100mtr) @ 862 MHz 19.0 dB
Attenuation (200C/100mtr) @ 1000 MHz
Attenuation (200C/100mtr) @ 1350 MHz
Attenuation (200C/100mtr) @ 1750 MHz
Attenuation (200C/100mtr) @ 2150 MHz
Attenuation (200C/100mtr) @ 2400 MHz
Attenuation (200C/100mtr) @ 3000 MHz
21.5 dB
25.33 dB
28.4 dB
30.5 dB
31.9 dB
37.0 dB

RETURN LOSS
Structural return loss @ 5-470 MHz > 23 dB
Structural return loss @ 470-1000 MHz > 21 dB
Structural return loss @ 1000-2000 MHz
Structural retum loss @ 2000-3000 MHz
> 18 dB
> 16 dB

ELECTRICAL
Impedance 75 ± 3 Q
Capacity 52 ± 3 pF/m
Velocity ratio 81 %
Inner DC resistance
Outer DC resistance
< 102 Q/km
< 60 Q/km

OPERATIONAL
Application Outdoor
Screening Efficiency EN50117 (Class B)
MECHANICAL
Cable length 305 m
Minimum bending radius – single/repeated
Colour Black
Packaging Height 0,001 m
23/70 mm
Net Weight
Tara Weight
Total Weight
0,038 kg
0,003 kg
0,041 kg
