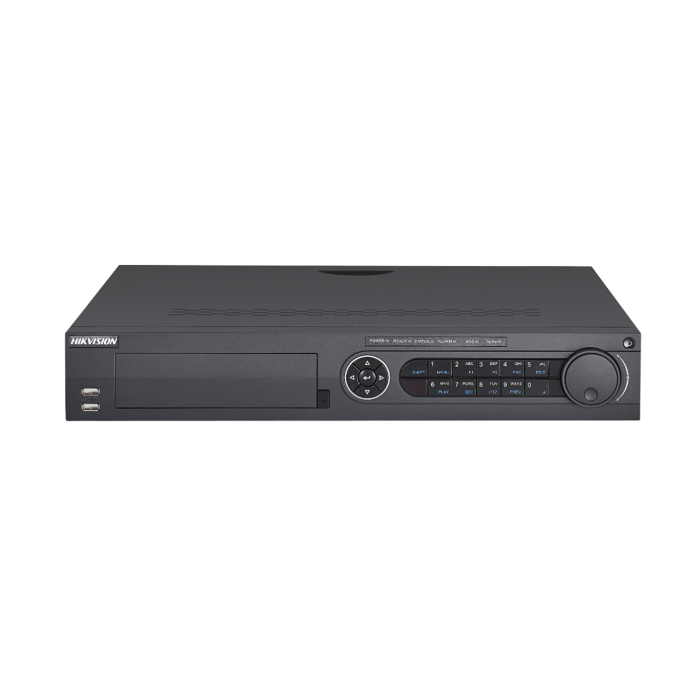

Hikvision (DS-7304HQHl-K4 (Turbo HD 4.0) 4-ch 1080p 1.5U H.265 DVR

Recording
Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

When 1080p Lite mode is not enabled:,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF.

Frame rate:

Main stream:, When 1080p Lite mode is not enabled:, For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N), For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps, For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N), For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N), When 1080p Lite mode enabled:,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/ 30fps (N), Sub-stream:, WD1/4CIF@12fps; CIF@25fps (P)/30fps (N).

Video Bit Rate: 32 Kbps to 6 Mbps

Dual Stream: Support

Stream Type :Video, Video & Audio

Audio Compression : G.711u

Audio Bit Rate :  64 Kbps

Video And Audio
IP Video Input: 2-ch (up to 6-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input: 4-ch BNC interface (1.0 Vp-p, 75Ω), supporting coaxitron connection

HDMI Output:
VGA: 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x
768/60Hz,HDMI: 1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

CVBS Input
PAL/NTSC
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 x 480
Synchronous Playback
4-ch
HDTVI Input
4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25,*: The 3 MP signal input

Dimensions (W x D x H):445 x 390 x 70 mm (17.5 x 15.4 x 2.8 inch)
